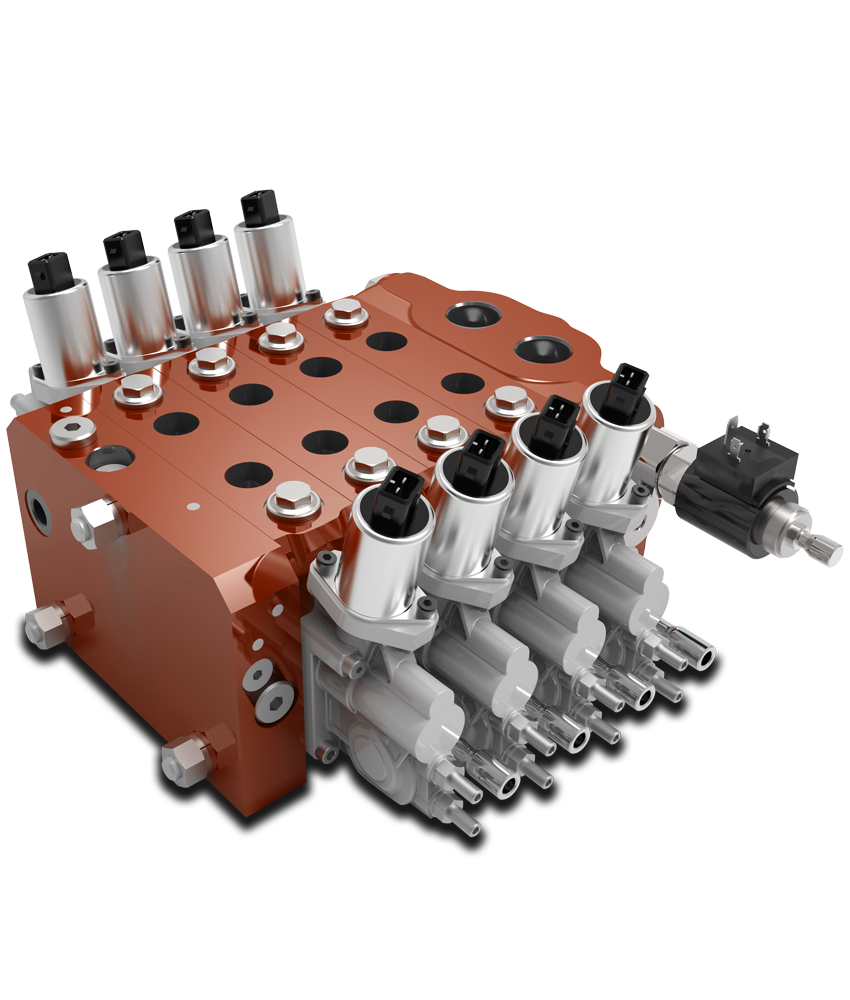

EX38 is ideal for applications such as Truck Mounted Cranes, Foresry Trailers, Skip and Hook Loaders, Mini-excavators, Tractors and Agricultural Machines.

- Right or Left inlet configurations

- Full Flow or LS signal pressure relief valves and solenoid unloader valve

- Pre-compensated or Post-compensated working sections configurations

- Working section with or without port valve arrangement

- Full Flow or LS signal pressure relief valves on each section

- Mechanical, hydraulic, pneumatic and proportional electro-hydraulic controls

- Optional spool position sensors

- EX Series valves are stackable with each other.

Nominal Flow Rating on working ports l/min - (US gpm): 100 (26)
Nominal Flow Rating l/min - (US gpm): 150 (40)
Max. Pressure bar - (psi): 350 (5100)
Number of Sections: 10
Pitch mm (in): 38 (1,50)
